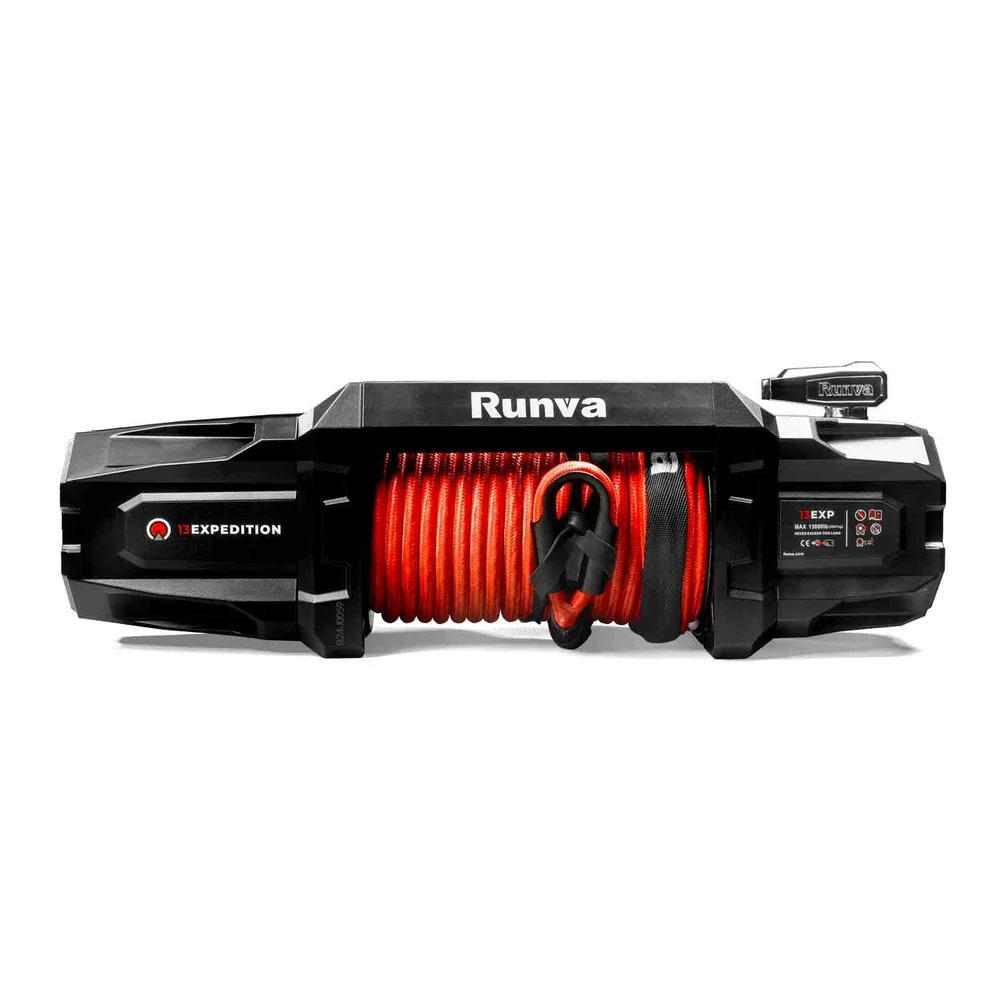

The new EXPEDITION range- A fully revamped version of the renown 13XP featuring a faster line speed with an effortless free spool
Key features -
13,000LB Line Pull Capacity
IP67 Ingress Protection
Fast 228:1 Gear Ratio
Ratchet Mechanical Brake System
Wireless Rechargeable Remote
Narrower frame to fit within space limitations on some modern winch bars
Double braided rope with low profile fairlead and hook.

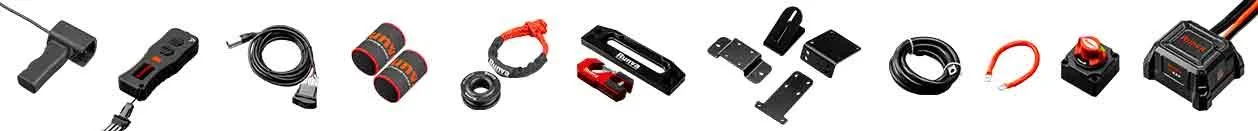

Whats in the box -
Complete Winch
Control Box
Control Box Mounting Brackets
Battery Leads
Wired Remote
Rechargeable Wireless Remote
Hawse Fairlead - Sleek modern design with low profile hook
Isolator Switch - Heavy Duty with mounts
Soft shackle and Snatch block ring
Mounting Bolts and hardware
Additional Runva Merch
Specifications -
RATED LINE PULL13,000LB (5,897KG)
MOTOR (12V) 5.0KW / 6.7HP; (24V) 6.0KW / 8.2HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 228:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 17/16" X 82.0' (11MM X 25M) | 25,250LB RATING
DRUM SIZE 2.48" X 8.5" (63MM X 217MM)
MOUNTING BOLT PATTERN 10" X 4.5" (254MM x 114.3MM)

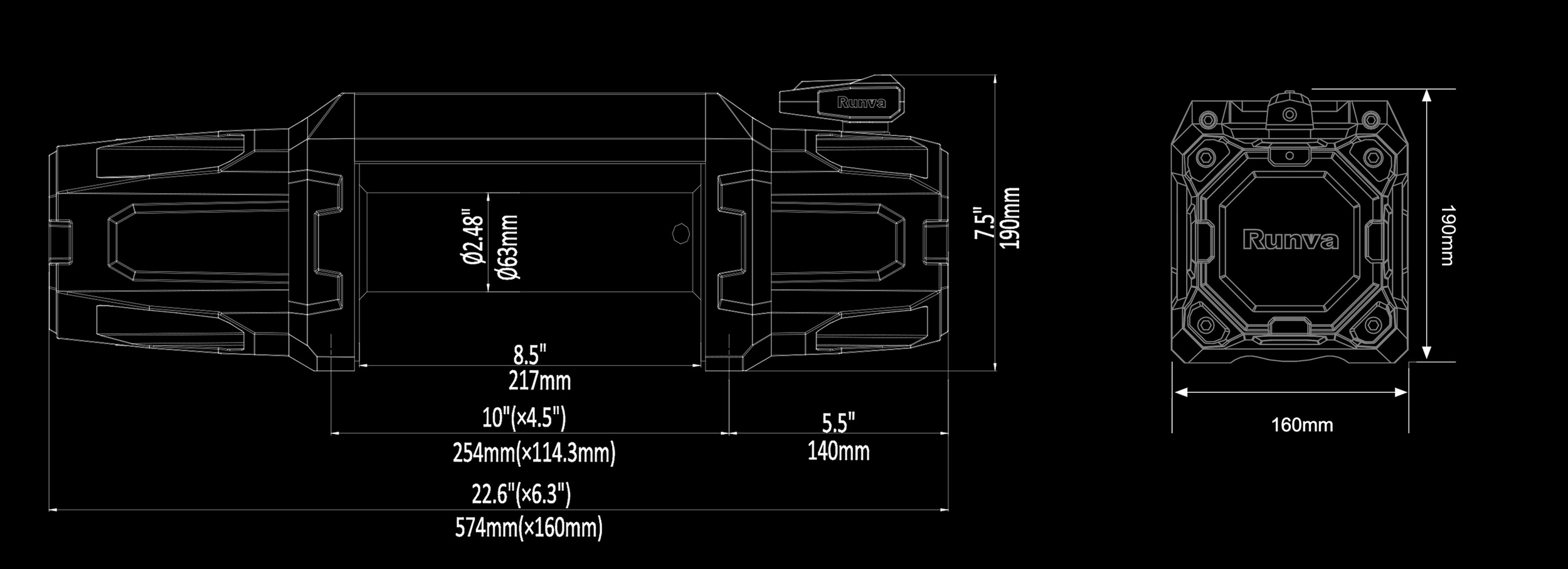

OVERALL DIMENSIONS 22.6" X 6.3" X 7.5" (574MM X 160MM X 190MM)
REMOTE CONTROL EXPEDITION WIRELESS REMOTE
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
