For those serious about competition or just want the ultimate package - look no further !
these are loaded with top spec features including-

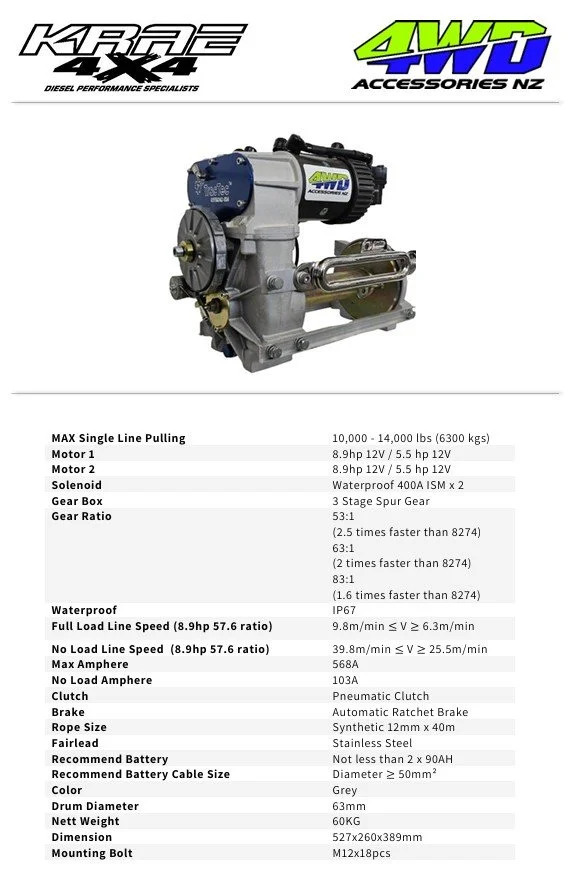

MAX Single Line Pulling 10,000 – 14,000 lbs (6300 kgs)
Motors 2x 8.9hp 12V / 5.5 hp 12V
Solenoid Waterproof 400A ISM x 2
Gear Box3 Stage Spur GearGear Ratio53:1
(2.5 times faster than 8274)
63:1
(2 times faster than 8274)
83:1
(1.6 times faster than 8274)
WaterproofIP67
Full Load Line Speed (8.9hp 57.6 ratio)9.8m/min ≤ V ≥ 6.3m/minNo Load Line Speed (8.9hp 57.6 ratio)39.8m/min ≤ V ≥ 25.5m/min
Max Amphere568A
No Load Amphere103A
Clutch Pneumatic Clutch
Brake Automatic Ratchet Brake
Rope Size Synthetic 12mm x 40m
Fairlead Stainless Steel
Recommend Battery Not less than 2 x 90AH
Recommend Battery Cable Size Diameter ≥ 50mm²
Color Grey
Drum Diameter 63mm
Nett Weight 60KG
Dimension 527x260x389mm
Mounting Bolt M12x18pcs
